DESCRIZIONE GENERALE
TVT

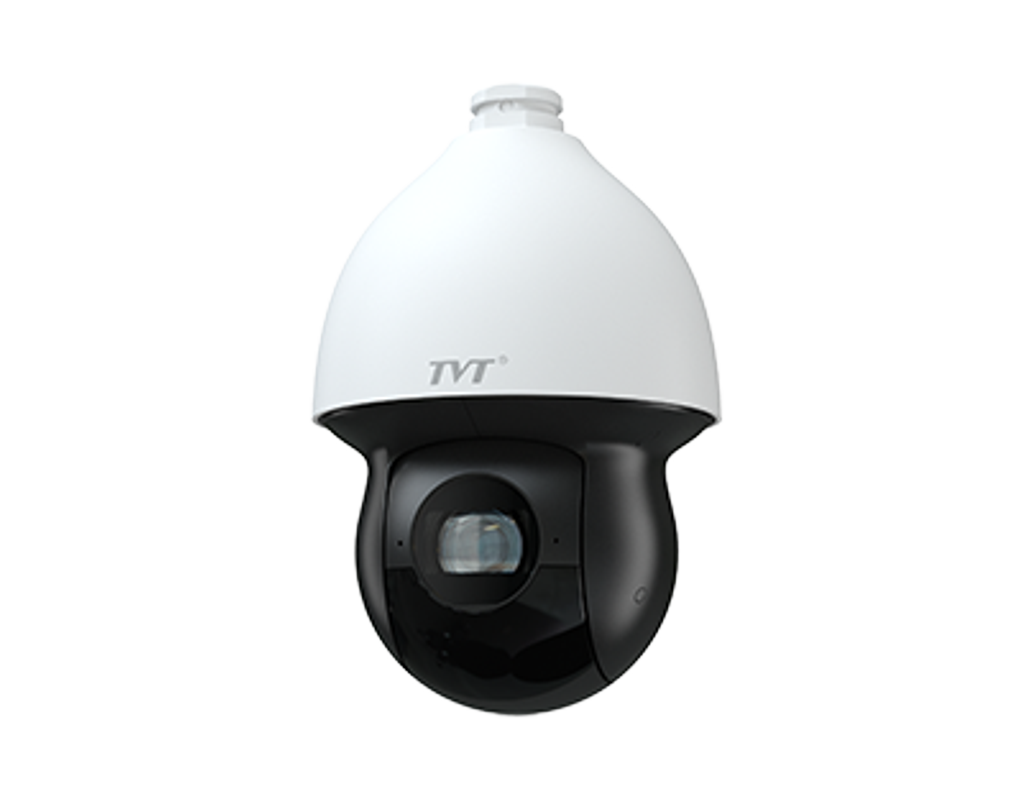

Telecamera IP Dome PTZ 8MP (3840×2160), PoE++, day/night, sensore 1/2.8″ a scansione progressiva CMOS, IR 200m, f=4.8-154mm, 32x zoom, BLC, HLC, WDR, 3D DNR, illuminazione minima: Colore: 0.01 Lux @ (F1.3,AGC ON); B/W: 0.002 Lux @(F1.3, AGC ON); con IR 0 Lux; Compressione video H.265+/H.265/H.264+/H.264/MJPEG, risoluzione stream principale 50Hz/25fps: 3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720 60Hz/30fps: 3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720, secondario 50Hz/25fps (704 × 576, 640 × 480, 352 × 288)
60Hz/30fps (704 × 480, 640 × 480, 352 × 240), terzo 50Hz/25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz/30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240), compressione audio G.711 A/U, 1 ingresso audio, 1 uscita audio, 1 ethernet RJ-45 10/100M, protocolli HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, P2P, RTMP, ONVIF G/S/T, 1 slot per microSD (max 256GB), 1 ingresso e 1 uscita allarme. Eventi smart: Rilevamentone movimento, tampering, rilevamento volit, tracciamento e rilevamento veicoli e persone. Protezione IP67 e IK10, alimentazione AC24V±25%/3000mA, DC24V±25%2500mA, PoE++ (802.3.bt,class 6), temperatura operativa - 40 °C ~ 65 °C umidità: inferiore al 95 %, dimensioni Φ 197mm × 302mm, peso 2,82Kg.
SCHEDA TECNICA
Codice
TD8583IE3NPE32MAR20
Sensore
1/2.8" progressive scan CMOS image sensor (SONY IMX715)
Giorno / Notte
Auto/Manual ,time schedule
Focale
f=4.8-154mm,32x optical zoom
Ronda
8 cruises, up to 16 presets for each cruise (ver5.1.1)
Percorsi
4 traces, record time over 3 minutes for each trace(ver5.1.)
Distanza IR
200m (656 f.t.)
Eventi Base
Motion detection, Video tampering alarm, Exception (Network disconnected, IP address conflict, SD full, SD error)
Deterrenza Attiva
Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection
Temperatura funzionamento
-40°C ~ 65°C (-40°F ~ 149°F), IR off; -40°C ~ 45°C,IR on; Cold start at - 30°C; 90%RH
