DESCRIZIONE GENERALE
TVT

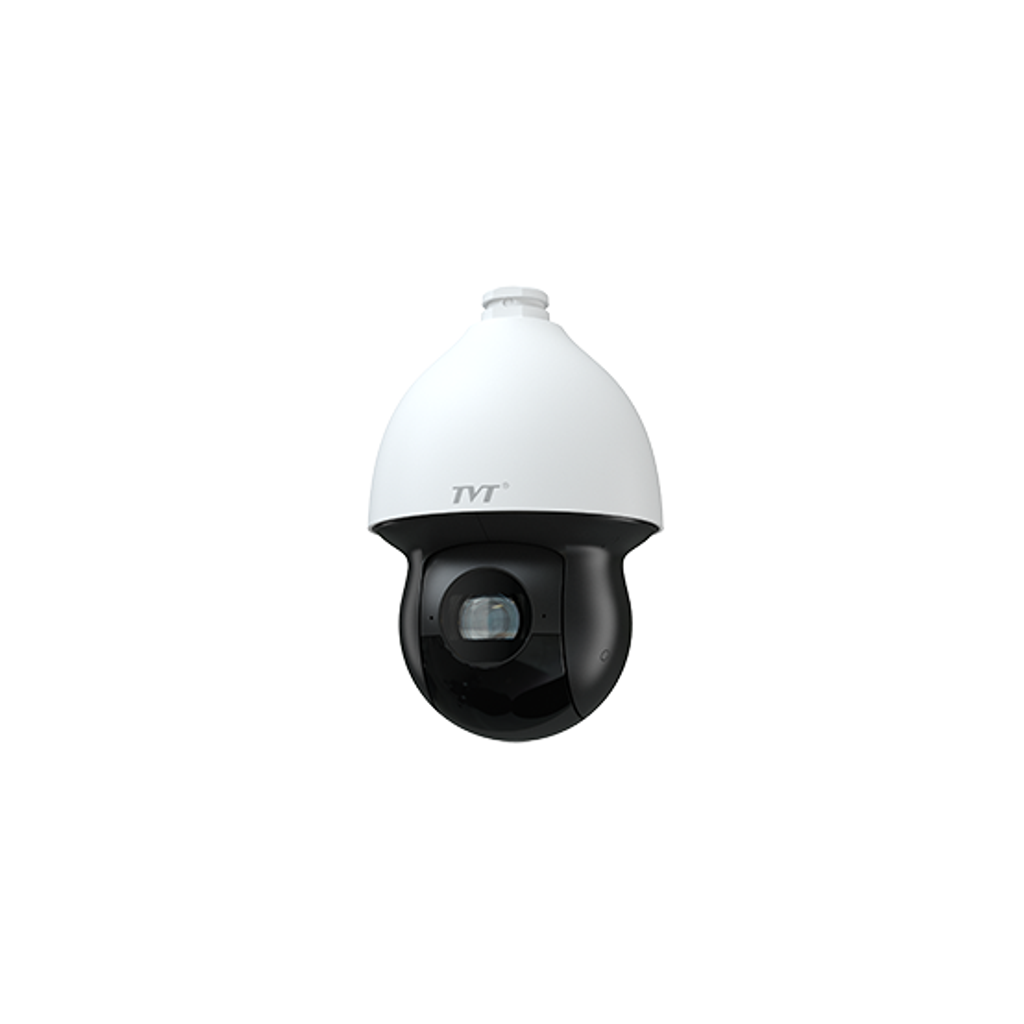

Telecamera IP Dome PTZ 4MP (2560 × 1440), PoE, IP67, IK10, day/night, sensore 1/2.8″ a scansione progressiva CMOS, BSI, NIR++ IR, IR smart,range: 350m , ottica motorizzata f=4.5-180mm obiettivo, zoom 40x, WDR ,illuminazione minima Colore:Colore: 0.005Lux @ (F1.2, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON); con IR 0 Lux; HLC, BLC, SNR, DNR 3D defog, triplo stream, Compressione video H.265+/H.265/H.264+/H.264/MJPEG, risoluzione stream principale 50Hz: 25fps: 2560×1440, 1920×1080, 1280×960, 1280×720; 60Hz: 30fps: 2560×1440, 1920×1080, 1280×960, 1280×720, second. 50Hz: 25fps: (704×576, 640×480, 352×288); 60Hz: 30fps (704×480, 640×480, 352×240), terzo 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288),60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240), compressione audio G.711 A/U, 1 ingresso audio, 1 uscita audio, 1 ethernet RJ-45,HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, 1CH ingresso e 1CH uscita audio, 1 slot per microSD (max 256GB), 1 ingresso e 1 uscita allarme. Eventi smart: Rilevamentone cattura Volto Attraversamento linea, intrusione area, ingresso/uscita area; tracciamento e rilevamento veicoli e persone, rilevamento movimento e manomissione video. Controllo remoto con Web Client/TVT NVR/NVMS/mobile APP, protezione IP67, alimentazione DC12V/PoE, assorbimento DC24V±25%, PoE+ (802.3.at, type 2), max 23,5W , temperatura operativa - 40 °C ~ 70 °C umidità: inf. al 95 %, dimensioni in mm Ø 302 × 197 peso 2,1Kg., montaggio a muro o soffitto.
SCHEDA TECNICA
Codice
TD8543IE3NPE40MAR35
Sensore
1/2.8" progressive scan CMOS image sensor, BSI and NIR++,dual gain
Giorno / Notte
Auto/Manual ,time schedule
Focale
f=4.5-180mm,40x optical zoom
Ronda
8 cruises, up to 16 presets (ver5.1.3 update:32presets) for each cruises
Percorsi
4 traces, record time over 3 minutes(ver5.1.3 update: 10minutes) for each trace
Distanza IR
350m (1312.3 f.t.)
Eventi Base
Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error)
Deterrenza Attiva
Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. More VCA will be available at ver5.1.3
Temperatura funzionamento
-40°C ~ 65°C (-40°F ~ 149°F), IR off; -40°C ~ 45°C,IR on; Cold start at - 30°C; 90%RH
